adc0.h File Reference

Driver for ADC scheduling and integration. More...

#include <stdint.h>
#include <stdbool.h>
#include <core/clk.h>
#include <hal/nrf_saadc.h>

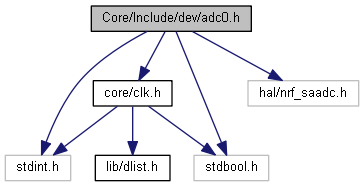

Include dependency graph for adc0.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	adc_state_t
struct	adc_streamer_state_t
struct	adc_mux_config_t
struct	adc_analog_config_t
struct	adc_digital_config_t
struct	adc_channel_t
struct	adc_streamer_t
struct	adc_schedule_t

Typedefs
typedef void(*	adc_callback_t) (enum adc_cb_parameter_t AdcCbParameter)
typedef void(*	adc_streamer_callback_t) (const struct adc_streamer_t *Adc, uint8_t SampleBufIndex)

Enumerations

Functions
Functions called from application programs
void	Adc0Init (const struct adc_schedule_t *AdcSchedule)
	Name: Adc0Init Initializes pointers used by ADC scheduler. Called from main program level. More...
bool	Adc0ChannelConfig (const struct adc_channel_t *Adc, int Index, const struct adc_analog_config_t *Config)
	Name: Adc0ChannelConfig Configures an analog channel in scan mode. More...
bool	Adc0ChannelStart (const struct adc_channel_t *Adc, uint32_t TimeRef)
	Name: Adc0ChannelStart Starts one ADC channel scheduler based on input parameters. More...
void	Adc0ManualScheduler (const struct adc_channel_t *Adc)
	Name: Adc0ManualScheduler Called by application for manual data scheduling. More...
void	Adc0ChannelDisable (const struct adc_channel_t *Adc)
	Name: Adc0ChannelDisable Disables one ADC channel scheduler based on input parameters. When all channels are disabled, the scheduler is stopped. More...
void	Adc0ChannelDisableAll (void)
	Name: Adc0ChannelDisableAll Disables all ADC channel schedulers and stops the scheduler.
uint16_t	Adc0GetMuxValue (const struct adc_channel_t *Adc, uint8_t MuxChannel)
	Name: Adc0GetMuxValue Starts ADC for selected ADC channel and mux input. More...
static uint16_t	Adc0GetValue (const struct adc_channel_t *Adc)
	Name: Adc0GetValue Starts ADC for selected ADC channel. More...
uint16_t	Adc0GetLastMuxValue (const struct adc_channel_t *Adc, uint8_t MuxChannel)
	Name: Adc0GetLastMuxValue Returns last converted ADC value for selected ADC channel and mux input. More...
static uint16_t	Adc0GetLastValue (const struct adc_channel_t *Adc)
	Name: Adc0GetLastValue Returns last converted ADC value for selected ADC channel. More...
uint32_t	Adc0GetIntegratedMuxValue (const struct adc_channel_t *Adc, uint8_t MuxChannel, uint16_t *Count)
	Name: Adc0GetIntegratedMuxValue Returns integrated ADC value for selected ADC channel and mux input. More...
static uint32_t	Adc0GetIntegratedValue (const struct adc_channel_t *Adc, uint16_t *Count)
	Name: Adc0GetIntegratedValue Returns integrated ADC value for selected ADC channel. More...
uint16_t	Adc0GetMeanMuxValue (const struct adc_channel_t *Adc, uint8_t MuxChannel)
	Name: Adc0GetMeanMuxValue Returns mean ADC value for selected ADC channel and mux input. More...
static uint16_t	Adc0GetMeanValue (const struct adc_channel_t *Adc)
	Name: Adc0GetMeanValue Returns mean ADC value for selected ADC channel. More...
bool	Adc0StreamerStart (const struct adc_streamer_t *Adc)
	Name: Adc0StreamerStart Starts continous sampling and streaming of data. More...
void	Adc0StreamerDisable (const struct adc_streamer_t *Adc)
	Name: Adc0StreamerDisable Stops continous sampling and streaming of data. More...

Detailed Description

Driver for ADC scheduling and integration.

Author

KLO, Jetro AS

Definition in file adc0.h.
