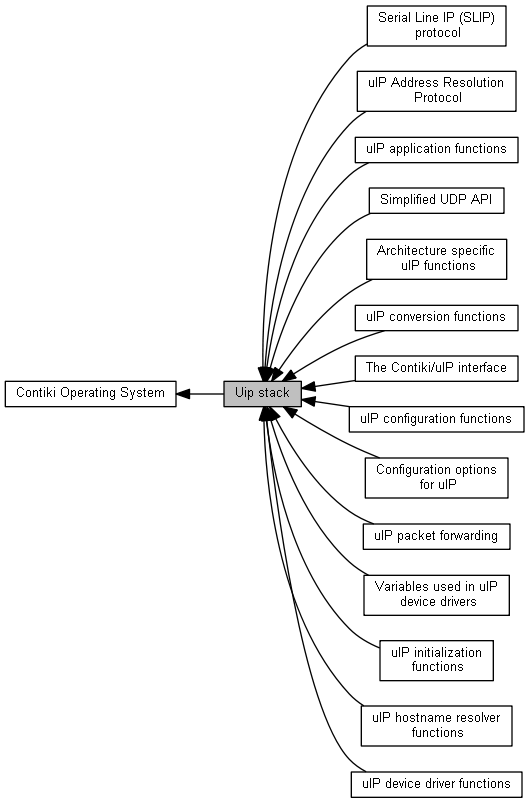

Collaboration diagram for Uip stack:

Modules
	uIP hostname resolver functions

	Simplified UDP API

	Serial Line IP (SLIP) protocol

	The Contiki/uIP interface

	uIP packet forwarding

	uIP configuration functions

	uIP initialization functions

	uIP device driver functions

	uIP application functions

	uIP conversion functions

	Variables used in uIP device drivers

	Architecture specific uIP functions

	uIP Address Resolution Protocol

	Configuration options for uIP

Files
file	uip.c

file	uip.h

Data Structures
union	uip_ip4addr_t

struct	uip_802154_shortaddr
	16 bit 802.15.4 address More...

struct	uip_802154_longaddr
	64 bit 802.15.4 address More...

struct	uip_80211_addr
	802.11 address More...

struct	uip_eth_addr
	802.3 address More...

struct	uip_conn

struct	uip_udp_conn

struct	uip_stats

Macros
#define	PRINTD(FORMAT, args...) do {} while (0)

#define	UIP_STAT(s)

#define	UIP_APPDATA_SIZE

Typedefs
typedef union uip_ip4addr_t	uip_ip4addr_t

typedef struct uip_802154_shortaddr	uip_802154_shortaddr
	16 bit 802.15.4 address

typedef struct uip_802154_longaddr	uip_802154_longaddr
	64 bit 802.15.4 address

typedef struct uip_80211_addr	uip_80211_addr
	802.11 address

typedef struct uip_eth_addr	uip_eth_addr
	802.3 address

typedef uip_eth_addr	uip_lladdr_t
	Ethernet address.

Functions
void	uip_setipid (uint16_t id)

void	uip_add32 (uint8_t *op32, uint16_t op16)

uint16_t	uip_chksum (uint16_t *data, uint16_t len)

uint16_t	uip_ipchksum (void)

uint16_t	uip_tcpchksum (void)

void	uip_init (void)

void	uip_unlisten (uint16_t port)

void	uip_listen (uint16_t port)

void	uip_process (uint8_t flag)
	process the options within a hop by hop or destination option header More...

uint16_t	uip_htons (uint16_t val)

void	uip_send (const void *data, int len)

uint16_t	uip_udpchksum (void)

uint16_t	uip_icmp6chksum (void)

Variables
void *	uip_appdata

uint16_t	uip_len

struct uip_conn *	uip_conn

uint8_t	uip_acc32 [4]

CCIF void *	uip_appdata

CCIF struct uip_conn *	uip_conn

struct uip_udp_conn *	uip_udp_conn

Detailed Description

Macro Definition Documentation

#define PRINTD	(	FORMAT,
		args...
	)	do {} while (0)

The macro provides debug print functionality

Definition at line 100 of file uip.c.

Referenced by uip_process(), and uip_send().

#define UIP_STAT ( s )

The uIP TCP/IP statistics.

This is the variable in which the uIP TCP/IP statistics are gathered.

Definition at line 1450 of file uip.h.

Referenced by uip_process().

#define UIP_APPDATA_SIZE

The buffer size available for user data in the uip_buf buffer.

This macro holds the available size for user data in the uip_buf buffer. The macro is intended to be used for checking bounds of available user data.

Example:

1 snprintf(uip_appdata, UIP_APPDATA_SIZE, "%u\n", i);

Definition at line 1897 of file uip.h.

Typedef Documentation

typedef union uip_ip4addr_t uip_ip4addr_t

Representation of an IP address.

Function Documentation

void uip_setipid ( uint16_t id )

uIP initialization function.

This function may be used at boot time to set the initial ip_id.

Definition at line 195 of file uip.c.

void uip_add32	(	uint8_t *	op32,
		uint16_t	op16
	)

Carry out a 32-bit addition.

Because not all architectures for which uIP is intended has native 32-bit arithmetic, uIP uses an external C function for doing the required 32-bit additions in the TCP protocol processing. This function should add the two arguments and place the result in the global variable uip_acc32.

Note: The 32-bit integer pointed to by the op32 parameter and the result in the uip_acc32 variable are in network byte order (big endian).

Parameters

op32	A pointer to a 4-byte array representing a 32-bit integer in network byte order (big endian).
op16	A 16-bit integer in host byte order.

Definition at line 266 of file uip.c.

References data, and uip_acc32.

Referenced by uip_listen(), and uip_process().

uint16_t uip_chksum	(	uint16_t *	buf,
		uint16_t	len
	)

Calculate the Internet checksum over a buffer.

The Internet checksum is the one's complement of the one's complement sum of all 16-bit words in the buffer.

See RFC1071.

Parameters

buf	A pointer to the buffer over which the checksum is to be computed.
len	The length of the buffer over which the checksum is to be computed.

Returns: The Internet checksum of the buffer.

Definition at line 328 of file uip.c.

References uip_htons().

Referenced by uip_fw_init(), and uip_process().

uint16_t uip_ipchksum ( void )

Calculate the IP header checksum of the packet header in uip_buf.

The IP header checksum is the Internet checksum of the 20 bytes of the IP header.

Returns: The IP header checksum of the IP header in the uip_buf buffer.

Definition at line 335 of file uip.c.

References uip_htons(), uip_icmp6chksum(), and UIP_LLH_LEN.

Referenced by uip_fw_init(), uip_listen(), and uip_process().

uint16_t uip_tcpchksum ( void )

Calculate the TCP checksum of the packet in uip_buf and uip_appdata.

The TCP checksum is the Internet checksum of data contents of the TCP segment, and a pseudo-header as defined in RFC793.

Returns: The TCP checksum of the TCP segment in uip_buf and pointed to by uip_appdata.

Definition at line 381 of file uip.c.

References uip_udpchksum().

Referenced by uip_process().

void uip_init ( void )

uIP initialization function.

This function should be called at boot up to initilize the uIP TCP/IP stack.

Definition at line 396 of file uip.c.

References uip_conn::arpid, uip_udp_conn::arpid, backlog, dlist_init(), uip_conn::initialmss, uip_conn::len, uip_conn::lport, uip_udp_conn::lport, uip_conn::mss, uip_conn::nrtx, uip_conn::ripaddr, uip_udp_conn::ripaddr, uip_conn::rport, uip_udp_conn::rport, uip_conn::rto, uip_conn::sa, uip_conn::snd_nxt, uip_conn::sv, uip_conn::tcpstateflags, uip_conn::timer, uip_udp_conn::ttl, uip_connect(), UIP_CONNS, UIP_HTONS, uip_htons(), uip_ipaddr_copy, UIP_LISTENPORTS, UIP_RTO, UIP_TCP_MSS, UIP_TTL, UIP_UDP_CONNS, uip_udp_new(), and uip_conn::window.

Referenced by tcpip_input().

void uip_unlisten ( uint16_t port )

Stop listening to the specified port.

Note: Since this function expects the port number in network byte order, a conversion using UIP_HTONS() or uip_htons() is necessary.

1 uip_unlisten(UIP_HTONS(80));

Parameters

port	A 16-bit port number in network byte order.

Definition at line 542 of file uip.c.

References UIP_LISTENPORTS.

Referenced by tcpip_output().

void uip_listen ( uint16_t port )

Start listening to the specified port.

Note: Since this function expects the port number in network byte order, a conversion using UIP_HTONS() or uip_htons() is necessary.

1 uip_listen(UIP_HTONS(80));

Parameters

port	A 16-bit port number in network byte order.

Definition at line 553 of file uip.c.

References uip_conn::rcv_nxt, uip_acc32, uip_add32(), uip_ipchksum(), UIP_LISTENPORTS, and UIP_REASS_MAXAGE.

Referenced by tcpip_output().

void uip_process ( uint8_t flag )

process the options within a hop by hop or destination option header

Return values

0	nothing to send,
1	drop pkt
2	ICMP error message to send

Definition at line 706 of file uip.c.

References uip_conn::arpid, uip_udp_conn::arpid, uip_conn::backlog, uip_conn::initialmss, uip_conn::len, uip_conn::lport, uip_udp_conn::lport, uip_conn::mss, uip_conn::nrtx, PRINTD, uip_conn::rcv_nxt, uip_conn::ripaddr, uip_udp_conn::ripaddr, uip_conn::rport, uip_udp_conn::rport, uip_conn::rto, uip_conn::sa, send(), uip_conn::snd_nxt, uip_conn::sv, uip_conn::tcpstateflags, uip_conn::timer, uip_udp_conn::ttl, uip_acc32, uip_add32(), UIP_APPCALL, uip_appdata, uip_chksum(), UIP_CONF_IPV6, uip_conn, UIP_CONNS, UIP_HTONS, uip_icmp6chksum(), uip_ipaddr_copy, uip_ipchksum(), uip_len, UIP_LISTENPORTS, UIP_LLH_LEN, UIP_MAXRTX, UIP_MAXSYNRTX, UIP_RECEIVE_WINDOW, UIP_RTO, UIP_STAT, UIP_TCP_MSS, uip_tcpchksum(), UIP_TIME_WAIT_TIMEOUT, UIP_TTL, uip_udp_conn, UIP_UDP_CONNS, uip_udpchksum(), and uip_conn::window.

uint16_t uip_htons ( uint16_t val )

Convert a 16-bit quantity from host byte order to network byte order.

This function is primarily used for converting variables from host byte order to network byte order. For converting constants to network byte order, use the UIP_HTONS() macro instead.

Definition at line 2076 of file uip.c.

References UIP_HTONS.

Referenced by uip_chksum(), uip_init(), and uip_ipchksum().

void uip_send	(	const void *	data,
		int	len
	)

Send data on the current connection.

This function is used to send out a single segment of TCP data. Only applications that have been invoked by uIP for event processing can send data.

The amount of data that actually is sent out after a call to this function is determined by the maximum amount of data TCP allows. uIP will automatically crop the data so that only the appropriate amount of data is sent. The function uip_mss() can be used to query uIP for the amount of data that actually will be sent.

Note: This function does not guarantee that the sent data will arrive at the destination. If the data is lost in the network, the application will be invoked with the uip_rexmit() event being set. The application will then have to resend the data using this function.

Parameters

data	A pointer to the data which is to be sent.
len	The maximum amount of data bytes to be sent.

Definition at line 2088 of file uip.c.

References uip_conn::len, uip_conn::mss, PRINTD, uip_conn::ripaddr, uip_udp_conn::ripaddr, UIP_BUFSIZE, UIP_LLH_LEN, and uip_conn::window.

uint16_t uip_udpchksum ( void )

Calculate the UDP checksum of the packet in uip_buf and uip_appdata.

The UDP checksum is the Internet checksum of data contents of the UDP segment, and a pseudo-header as defined in RFC768.

Returns: The UDP checksum of the UDP segment in uip_buf and pointed to by uip_appdata.

Referenced by uip_process(), and uip_tcpchksum().

uint16_t uip_icmp6chksum ( void )

Calculate the ICMP checksum of the packet in uip_buf.

Returns: The ICMP checksum of the ICMP packet in uip_buf

Referenced by uip_ipchksum(), and uip_process().

Variable Documentation

void* uip_appdata

Pointer to the application data in the packet buffer.

This pointer points to the application data when the application is called. If the application wishes to send data, the application may use this space to write the data into before calling uip_send().

Definition at line 154 of file uip.c.

Referenced by simple_udp_deregister(), slipdev_send(), uip_arp_out(), uip_fw_forward(), and uip_process().

uint16_t uip_len

The length of the packet in the uip_buf buffer.

The global variable uip_len holds the length of the packet in the uip_buf buffer.

When the network device driver calls the uIP input function, uip_len should be set to the length of the packet in the uip_buf buffer.

When sending packets, the device driver should use the contents of the uip_len variable to determine the length of the outgoing packet.

Definition at line 166 of file uip.c.

Referenced by slipdev_send(), tcpip_input(), tcpip_output(), uip_arp_arpin(), uip_arp_out(), uip_arp_timer(), uip_fw_forward(), uip_fw_init(), uip_fw_output(), and uip_process().

struct uip_conn* uip_conn

Pointer to the current TCP connection.

The uip_conn pointer can be used to access the current TCP connection.

Definition at line 174 of file uip.c.

Referenced by uip_process().

uint8_t uip_acc32[4]

4-byte array used for the 32-bit sequence number calculations.

Definition at line 206 of file uip.c.

Referenced by uip_add32(), uip_listen(), and uip_process().

CCIF void* uip_appdata

Pointer to the application data in the packet buffer.

This pointer points to the application data when the application is called. If the application wishes to send data, the application may use this space to write the data into before calling uip_send().

Definition at line 154 of file uip.c.

Referenced by simple_udp_deregister(), slipdev_send(), uip_arp_out(), uip_fw_forward(), and uip_process().

CCIF struct uip_conn* uip_conn

Pointer to the current TCP connection.

The uip_conn pointer can be used to access the current TCP connection.

Definition at line 174 of file uip.c.

Referenced by uip_process().

struct uip_udp_conn* uip_udp_conn

The current UDP connection.

Referenced by uip_process().
