Interface for Key driver in key.c. More...

#include <core/mwork.h>
#include <sys/process.h>
#include <sys/event-base.h>
#include <lib/assert.h>

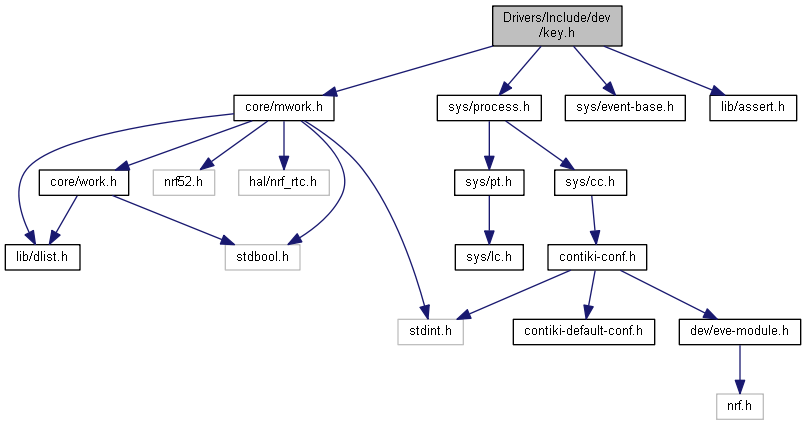

Include dependency graph for key.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	key_repeat_t
	The structure defines key repeat parameters. More...

struct	key_combi_t
	The structure defines combi key parameters. Note that it is possible to define individual debounce time for each group. Thus it is also the way to define an individual key with debouncing which differs from default KEY_PRELL_TIME : just define a "group of 1 key. More...

Enumerations

Functions
Functions called from application programs
void	StartKeyScan (void)
	Start Keys scanning. More...

void	KeyInterruptCb (void)
	This callback function must be called when a key interrupt is received by the platform. More...

void	KeyDebounceTimeSet (uint16_t Time)
	Sets key debounce time. Default time is KEY_PRELL_TIME. More...

bool	KeyStatusGet (uint8_t KeyIndex)
	Returns status of debounced key. More...

Application' keypad configuration and supplied functions.
The following is the keypad driver setup for application's board.h and board.c files.
#define	KEY_ENABLED true/false

#define	KEYS_HAVE_NO_INTERRUPT true/false

#define	REPEAT_KEY_ENABLED true/false

#define	REPEAT_KEY_STEP2_ENABLED true/false

#define	COMBI_KEYS_ENABLED true/false

#define	COMBI_KEY_RELEASE_ENABLED true/false

#define	NUMBER_OF_KEYS <N>

#define	NUMBER_OF_REPEAT_KEYS <N>

#define	NUMBER_OF_COMBI_GROUPS <N>

#define	KEY_SIGNAL_RECEIVER <struct process *p>

#define	SCAN_KEY_INTERVAL <T>

#define	KEY_PRELL_TIME <T>

struct key_repeat_t	ConfigKeyRepeat [NUMBER_OF_REPEAT_KEYS]
	User defined array of key_repeat_t structures defines key repeat parameters.

struct key_combi_t	ConfigKeyCombi [NUMBER_OF_COMBI_GROUPS]
	User defined array of key_combi_t structures defines combi key groups parameters.

static __inline uint32_t	ReadKeyInput (void)
	Application supplied board-specific callback function for reading key inputs. More...

void	KeyInterruptEnable (bool Enable)
	Application supplied board-specific callback function to enable or disable HW interrupts for all keys. More...

Detailed Description

Interface for Key driver in key.c.

Definition in file key.h.
