spi-memory.h File Reference

Driver for SPI-based memories. More...

#include <dev/spi.h>
#include <dev/eve-module.h>

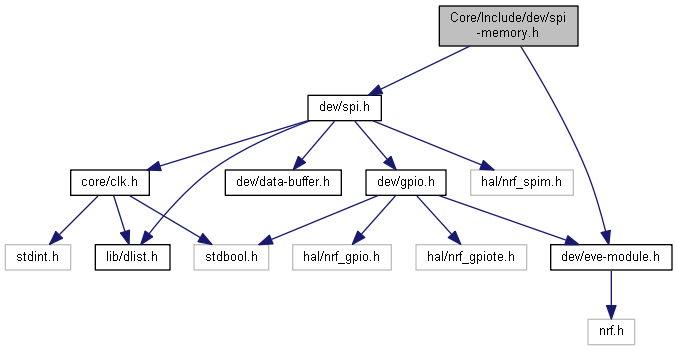

Include dependency graph for spi-memory.h:

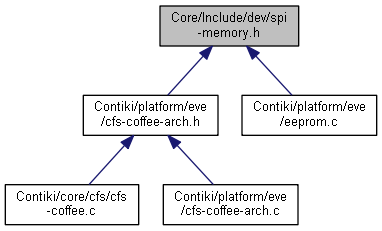

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	spi_memory_t
struct	spi_memory_data_buffer_header

Macros
#define	SPI_MEMORY_HINT_GENERIC   0
#define	SPI_MEMORY_HINT_GENERIC_SRAM   1
#define	SPI_MEMORY_DATA_BUFFER_COMMAND_SIZE   4
#define	SPI_MEMORY_DATA_BUFFER_TYPE(type, size)

Typedefs
typedef void(*	spi_memory_completion_callback_t) (const struct spi_memory_t *Memory, struct spi_memory_data_buffer_header *BufferHeader)

Functions
	SPI_MEMORY_DATA_BUFFER_TYPE (spi_memory_generic_buffer_t, 0)
Functions called from application programs
bool	SpiMemoryInit (const struct spi_memory_t *Memory)
	Name: SpiMemoryInit Waits for power on and then release SPI memory from deep powerdown. KØ!! ???????????? Called from main program level. More...
bool	SpiMemoryDisable (const struct spi_memory_t *Memory)
	Name: SpiMemoryDisable Sets SPI memory in deep powerdown. Called from main program level. More...
bool	SpiMemorySetWriteProtection (const struct spi_memory_t *Memory, enum spi_memory_protection_t Protection)
	Name: SpiMemorySetWriteProtection Sets write protection for SPI memory and waits for completion. Called from main program level. More...
bool	SpiMemoryEraseSectorAsync (const struct spi_memory_t *Memory, uint32_t SectorIndex)
	Name: SpiMemoryEraseSectorAsync Begines erasing given sector in SPI memory. Called from main program level. At function return SPI transfer is completed; erase is started, but not completed. Caller code should use SpiMemoryIsBusy to wait for the completion. More...
bool	SpiMemoryEraseSector (const struct spi_memory_t *Memory, uint32_t SectorIndex)
	Name: SpiMemoryEraseSector Erases given sector in SPI memory and waits for completion. Called from main program level. More...
bool	SpiMemoryEraseBlockAsync (const struct spi_memory_t *Memory, uint32_t BlockIndex)
	Name: SpiMemoryEraseBlockAsync Begines erasing given block in SPI memory. Called from main program level. At function return SPI transfer is completed; erase is started, but not completed. Caller code should use SpiMemoryIsBusy to wait for the completion. More...
bool	SpiMemoryEraseBlock (const struct spi_memory_t *Memory, uint32_t BlockIndex)
	Name: SpiMemoryEraseBlock Erases given block in SPI memory and waits for completion. Called from main program level. More...
bool	SpiMemoryEraseAsync (const struct spi_memory_t *Memory)
	Name: SpiMemoryEraseAsync Begines erasing the whole SPI memory. Called from main program level. At function return SPI transfer is completed; erase is started, but not completed. Caller code should use SpiMemoryIsBusy to wait for the completion. More...
bool	SpiMemoryErase (const struct spi_memory_t *Memory)
	Name: SpiMemoryErase Erases the whole SPI memory and waits for completion. Called from main program level. More...
bool	SpiMemoryReadAsync (const struct spi_memory_t *Memory, struct spi_memory_data_buffer_header *DstBuffer, uint32_t SrcAddress, uint32_t ByteCount, spi_memory_completion_callback_t Callback)
	Name: SpiMemoryReadAsync Reads bytes from SPI memory to DstBuffer. Called from main program level. Does not wait for completion, the completion callback is called instead when transfer is finished. Calling code should not use SPI bus until the completion callback is called. More...
bool	SpiMemoryRead (const struct spi_memory_t *Memory, void *DstBuffer, uint32_t SrcAddress, uint32_t ByteCount)
	Name: SpiMemoryRead Reads bytes from SPI memory to DstBuffer. Called from main program level. More...
static bool	SpiMemoryReadPageAsync (const struct spi_memory_t *Memory, struct spi_memory_data_buffer_header *DstBuffer, uint32_t PageIndex, spi_memory_completion_callback_t Callback)
	Name: SpiMemoryReadPageAsync Reads the page PageIndex from SPI memory to DstBuffer. Called from main program level. Does not wait for completion, the completion callback is called instead when transfer is finished. Calling code should not use SPI bus until the completion callback is called. More...
static bool	SpiMemoryReadPage (const struct spi_memory_t *Memory, void *DstBuffer, uint32_t PageIndex)
	Name: SpiMemoryReadPage Reads the page PageIndex from SPI memory to DstBuffer. Called from main program level. More...
static bool	SpiMemoryReadPageWithOffsetAsync (const struct spi_memory_t *Memory, struct spi_memory_data_buffer_header *DstBuffer, uint32_t PageIndex, uint32_t PageOffset, uint32_t ByteCount, spi_memory_completion_callback_t Callback)
	Name: SpiMemoryReadPageWithOffsetAsync Reads the page PageIndex with offset from SPI memory to DstBuffer. Called from main program level. Does not wait for completion, the completion callback is called instead when transfer is finished. Calling code should not use SPI bus until the completion callback is called. More...
static bool	SpiMemoryReadPageWithOffset (const struct spi_memory_t *Memory, void *DstBuffer, uint32_t PageIndex, uint32_t PageOffset, uint32_t ByteCount)
	Name: SpiMemoryReadPageWithOffset Reads the page PageIndex with offset from SPI memory to DstBuffer. Called from main program level. More...
bool	SpiMemoryWriteAsync (const struct spi_memory_t *Memory, uint32_t DstAddress, struct spi_memory_data_buffer_header *SrcBuffer, uint32_t ByteCount, spi_memory_completion_callback_t Callback)
	Name: SpiMemoryWriteAsync Writes bytes from SrcBuffer to SPI memory. It the SPI memory is page based, the data must fit into a single page, and the page must be erased before writing. Return after writing is finished. Called from main program level. Does not wait for completion, the completion callback is called instead when SPI transfer is finished. Calling code should not use SPI bus until the completion callback is called. Note that completion of the in-chip writing process is not indicated by any kind of callback. Calling code should use SpiMemoryIsBusy to wait for the completion. More...
bool	SpiMemoryWrite (const struct spi_memory_t *Memory, uint32_t DstAddress, const void *SrcBuffer, uint32_t ByteCount)
	Name: SpiMemoryWrite Writes bytes from SrcBuffer to SPI memory. It the SPI memory is page based, the data must fit into a single page, and the page must be erased before writing. Return after writing is finished. Called from main program level. More...
static bool	SpiMemoryWritePageAsync (const struct spi_memory_t *Memory, uint32_t PageIndex, struct spi_memory_data_buffer_header *SrcBuffer, spi_memory_completion_callback_t Callback)
	Name: SpiMemoryWritePageAsync Writes page data from SrcBuffer to page PageIndex in SPI memory. The page must be erased before writing. Return after writing is finished. Called from main program level. Does not wait for completion, the completion callback is called instead when SPI transfer is finished. Calling code should not use SPI bus until the completion callback is called. Note that completion of the in-chip writing process is not indicated by any kind of callback. Calling code should use SpiMemoryIsBusy to wait for the completion. More...
static bool	SpiMemoryWritePage (const struct spi_memory_t *Memory, uint32_t PageIndex, const void *SrcBuffer)
	Name: SpiMemoryWritePage Writes page data from SrcBuffer to page PageIndex in SPI memory. The page must be erased before writing. Return after writing is finished. Called from main program level. More...
bool	SpiMemoryVerify (const struct spi_memory_t *Memory, uint32_t SrcAddress, const void *SrcBuffer, uint32_t ByteCount)
	Name: SpiMemoryVerify Verifies data in SPI memory with SrcBuffer. Called from main program level. More...
static bool	SpiMemoryVerifyPage (const struct spi_memory_t *Memory, uint32_t PageIndex, const void *SrcBuffer)
	Name: SpiMemoryVerifyPage Verifies data in page PageIndex in SPI memory with SrcBuffer. Called from main program level. More...
bool	SpiMemoryIsBusy (const struct spi_memory_t *Memory)
	Name: SpiMemoryIsBusy Checks if the memory write or erase operation is in progress Called from main program level. More...
void	SpiMemoryPowerUp (const struct spi_memory_t *Memory)
	Name: SpiMemoryPowerUp Power up VCC for SPI memory. SpiEnable() must be called after this function to get SPI pin setup. Only to be used from EveSpiPowerUp() More...
void	SpiMemoryPowerDown (const struct spi_memory_t *Memory)
	Name: SpiMemoryPowerDown Power down VCC for SPI memory. SpiDisable() must be called prior to this function to get default pin setup. Only to be used from EveSpiPowerDown() More...

Detailed Description

Driver for SPI-based memories.

Author

KLO, Jetro AS

Definition in file spi-memory.h.
