spi.h File Reference

Driver for the MCU's SPI blocks. More...

#include <core/clk.h>
#include <lib/dlist.h>
#include <dev/data-buffer.h>
#include <dev/gpio.h>
#include <hal/nrf_spim.h>

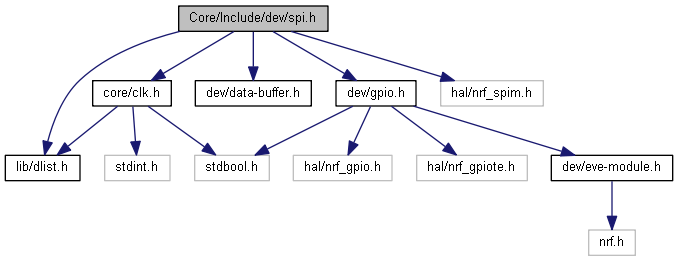

Include dependency graph for spi.h:

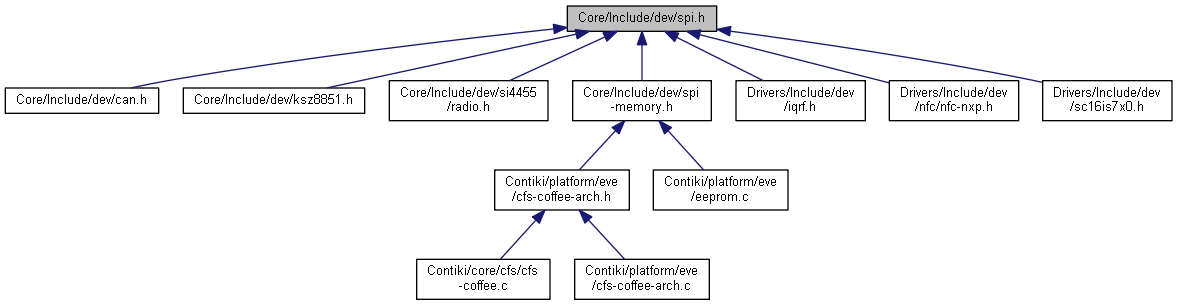

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	spi_cs_t
struct	spi_state_t
struct	spi_t

Macros
#define	ERRATA_58
#define	SPI_SYNC_FIFO_DEPTH   4
#define	SPI_CS_UNINITIALIZED   ((struct spi_cs_t) { .CsUnInitialized = 1 })

Typedefs
typedef void(*	spi_async_callback_t) (const struct spi_t *Spi, void *CallbackData)

Enumerations

Functions called from application programs
static bool struct spi_cs_t ChipSelect uint32_t Baudrate struct work_t *	Work
return	Ret
void	SpiInit (const struct spi_t *Spi)
	Name: SpiInit Initializes SPI based on selected device. Master operation: Baudrate is limited to 0.5*peripheral clock. Slave operation: Not implemented. Called from main program level. More...
void	SpiDisable (const struct spi_t *Spi)
	Name: SpiDisable Disables SPI based on selected device. Called from main program level. More...
uint8_t	SpiRead (const struct spi_t *Spi)
	Name: SpiRead WARNING: SpiWrite() must be called prior to this function. Waits for data received in RX FIFO. More...
void	SpiWrite (const struct spi_t *Spi, uint8_t DataToSend)
	Name: SpiWrite WARNING: SpiCsEnable() must be called prior to this function. Waits for empty transmit buffer, then sends 1 byte. More...
uint8_t	SpiWriteRead (const struct spi_t *Spi, uint8_t DataToSend)
	Name: SpiWriteRead WARNING: SpiCsEnable() must be called prior to this function. Waits for empty transmit buffer, sends 1 byte and waits for data received in RX FIFO. More...
void	SpiTransferAsync (const struct spi_t *Spi, const void *TxBuffer, uint32_t TxLength, void *RxBuffer, uint32_t RxLength, spi_async_callback_t Callback, void *CallbackData)
	Name: SpiTransferAsync WARNING: SpiCsEnable() must be called prior to this function. Starts asynchronous data transfer (both transmit and receive). More...
void	SpiTransferSync (const struct spi_t *Spi, const void *TxBuffer, uint32_t TxLength, void *RxBuffer, uint32_t RxLength, uint32_t Flags)
	Name: SpiTransferSync WARNING: SpiCsEnable() must be called prior to this function. Does synchronous data transfer (both transmit and receive). More...
void	SpiFlush (const struct spi_t *Spi)
	Name: SpiFlush WARNING: SpiCsEnable() must be called prior to this function. Waits for any previously transmission to be complete, then flushes RX FIFO. More...
static bool	SpiIsBusy (const struct spi_t *Spi)
	Name: SpiIsBusy WARNING: SpiCsEnable() must be called prior to this function. Testes if transmitter is busy, i.e. if data in transmit buffer and/or shift register. More...
void	SpiCsInit (struct spi_cs_t ChipSelect, uint32_t MaxBaudrate)
	Name: SpiCsInit Initializes SPI chip select instance. Called once from main program level before first SpiCsEnable() use. More...
bool	SpiCsEnable (const struct spi_t *Spi, struct spi_cs_t ChipSelect, uint32_t Baudrate)
	Name: SpiCsEnable Enables peripheral clock for USART, updates SPI setting according to ChipSelect, and activates chip select pin. More...
void	SpiCsRegisterWait (const struct spi_t *Spi, struct work_t *Work)
	Name: SpiCsRegisterWait Registers a work to be executed when the SPI block becomes available. More...
static bool	__attribute__ ((warn_unused_result)) SpiCsWait(const struct spi_t *Spi
	Name: SpiCsWait Enables peripheral clock for USART, updates SPI setting according to ChipSelect, and activates chip select pin. More...
	if (!Ret) SpiCsRegisterWait(Spi
void	SpiCsDisable (const struct spi_t *Spi, struct spi_cs_t ChipSelect)
	Name: SpiCsDisable Waits for any ongoing transmission to end, flush RX FIFO, disables chip select pin and disables peripheral clock for USART. More...
static bool	SpiCsIsActive (const struct spi_t *Spi, struct spi_cs_t ChipSelect)
	Name: SpiCsIsActive Checks that the given chip select is active. More...
void	SpiInterruptHandler (const struct spi_t *Spi)
	Name: SpiInterruptHandler SPI interrupt handler Called from board.c at hardware interrupt context. More...

Detailed Description

Driver for the MCU's SPI blocks.

Author

KLO, Jetro AS

DT, Jetro AS

Definition in file spi.h.
