gpio_ext_t Struct Reference

#include <gpio-ext.h>

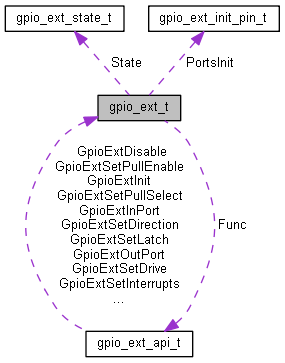

Collaboration diagram for gpio_ext_t:

Data Fields
const void *	Impl
	Device specific configuration data.
struct gpio_ext_state_t *	State
	Address to struct with RAM variables used by the driver.
uint8_t	PinsNum
	Total number of pins on the port.
uint16_t	PortMask
	Bitmask of all the pins on the port (f.ex. 0xFF for 8-bit port, 0xFFFF for 16-bit)
const struct gpio_ext_init_pin_t	PortsInit [16]
	Init values for each pin.
const struct gpio_ext_api_t *	Func
	Virtual functions table.

Detailed Description

GPIO driver configuration data

Definition at line 173 of file gpio-ext.h.
