nfc_nxp_t Struct Reference

NFC driver descriptor: static structure for configuration of driver instance. More...

#include <nfc-nxp.h>

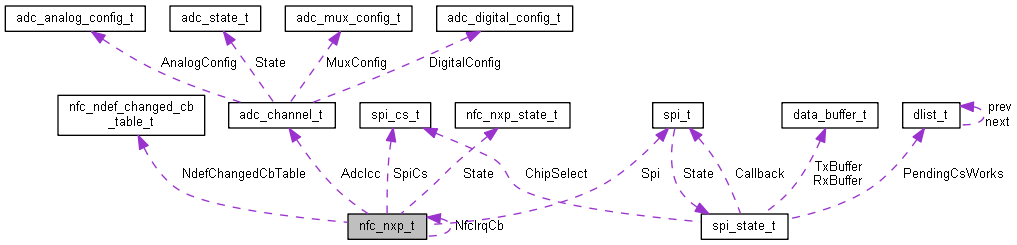

Collaboration diagram for nfc_nxp_t:

Data Fields
const struct nfc_ndef_changed_cb_table_t *	NdefChangedCbTable
	table of interrupt handlers for supported NFC message types
struct nfc_nxp_state_t *	State
	Pointer to the NFC state.
const struct spi_t *	Spi
	Pointer to the SPI interface instance.
const struct spi_cs_t	SpiCs
	SPI CS settings.
uint32_t	SpiBaudrate
	SPI speed.
const struct adc_channel_t *	AdcIcc
	ADC channel used for ICC measurement.
nfc_irq_callback_t	NfcIrqCb
	interrupt handler
uint8_t	IrqPin
	IRQn pin.
uint8_t	ResetPin
	RSTPDn pin.
uint8_t	DetectPin
	Card detect sense enable pin.
uint8_t	sens_res_def [2]
	ATQ bytes - needed for anti-collision.
uint8_t	nfc_id1_def [3]
	user defined bytes of the UID (one is hardcoded) - needed for anti-collision
uint8_t	sel_res_def
	SAK (ISO18092mT or ISO14443P4 Card) - needed for anti-collision.
uint8_t	nfc_id3_def
	NFC3 byte - required for anti-collision.
uint8_t	aAtsRes_def [5]
	ATS Response send for RATS: |TL|T0|TA|TB|TC|.
uint8_t	GI_def [13]
	General information bytes to be sent with ATR */.

Detailed Description

NFC driver descriptor: static structure for configuration of driver instance.

Definition at line 134 of file nfc-nxp.h.
