nfc-nxp.h File Reference

Driver for NFC in EVE. More...

#include <sys/etimer.h>
#include <dev/spi.h>
#include <core/rtos.h>
#include <nfc_t2t_lib.h>
#include "ph_NxpBuild_App.h"
#include "ph_NxpBuild.h"
#include <ph_Status.h>
#include <ph_RefDefs.h>
#include <phbalReg.h>
#include <phOsal.h>
#include <phpalI14443p3a.h>
#include <phpalI14443p4.h>
#include <phpalFelica.h>
#include <phpalI14443p3b.h>
#include <phpalI14443p4a.h>
#include <phpalI18092mPI.h>
#include <phpalMifare.h>
#include <phpalI14443p4mC.h>
#include <phpalSli15693.h>
#include <phpalI18000p3m3.h>
#include <phalI18000p3m3.h>
#include <phalT1T.h>
#include <phceT4T.h>
#include <phalFelica.h>
#include <phacDiscLoop.h>

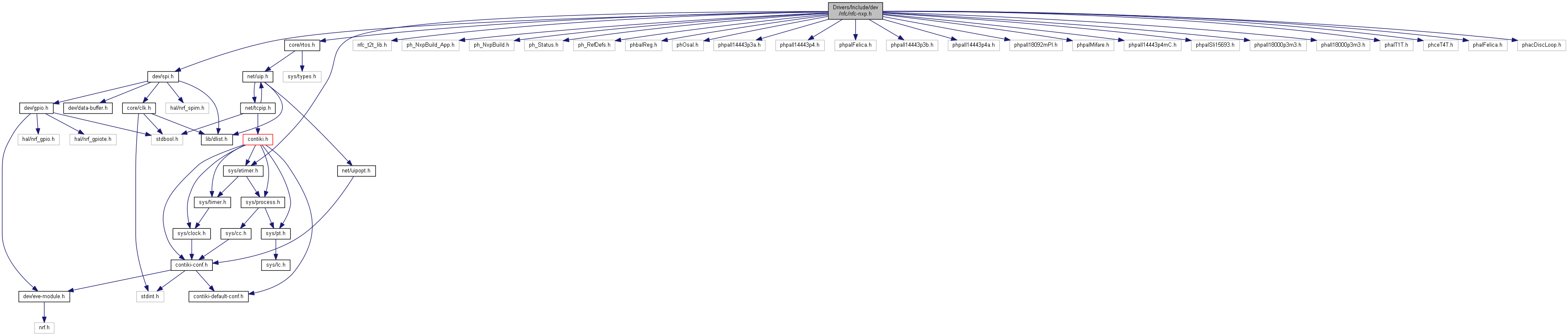

Include dependency graph for nfc-nxp.h:

Go to the source code of this file.

Data Structures
struct	nfc_nxp_t
	NFC driver descriptor: static structure for configuration of driver instance. More...
struct	nfc_nxp_state_t
	holds current NFC instance state variables. More...

Typedefs
typedef void(*	nfc_irq_callback_t) (const struct nfc_nxp_t *Nfc)
	The callback is called on interrupt from pn512. More...

Functions
bool	NfcNxpLibInit (const struct nfc_nxp_t *Nfc)
	Initialises NFC instance structure, connects it to SPI. Powers up pn512 if supported. More...
bool	NfcNxpLibDisable (const struct nfc_nxp_t *Nfc)
	Disables interrupts from pn512 and releases SPI. Powers down pn512 if supported by product HW. More...
void	NfcNxpResetReader (const struct nfc_nxp_t *Nfc)
	Performs pn512 HW reset. pn512 switches to configuration mode after reset. NB! It should be verified that pn512 is in configuration mode with NfcNxpGetMode() function after reset before any subsequent operation. More...
bool	NfcNxpSetup (const struct nfc_nxp_t *Nfc)
	Sets up pn512 registers according to preconfigured parameters. NB! pn512 should be in configuration mode. More...
uint8_t	NfcNxpDiscovery (const struct nfc_nxp_t *Nfc, bool Continue)
	Starts cards detection phase. During execution NFC lib is in the reader mode. NFC lib loops through all the available (configured) RF technologies. More...
void	NfcNxpGetUid (const struct nfc_nxp_t *Nfc, uint8_t TagIndex, uint8_t **Uid, uint8_t *UidLen)
	Returns UID of one of detected tags. More...
void	NfcNxpSetNdefFile (const struct nfc_nxp_t *Nfc, uint8_t *NdefFile, uint16_t NdefFileSize)
	Sets a memory buffer as an NDEF file for subsequent NfcNrfCardEmulation function call. More...
void	NfcNxpCardEmulation (const struct nfc_nxp_t *Nfc)
	Starts external RF detection phase During execution NFC lib is in the card emulation mode. . More...
void	NfcNxpInterruptCb (const struct nfc_nxp_t *Nfc)
	Driver's HW interrupt callback to be exposed to EVE config. More...

Detailed Description

Driver for NFC in EVE.

Author

DT, SE, Jetro AS

Definition in file nfc-nxp.h.
