uart_state_t Struct Reference

#include <uart.h>

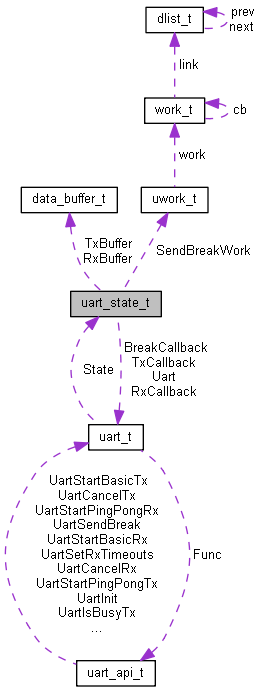

Collaboration diagram for uart_state_t:

Data Fields
const struct uart_t *	Uart
	Backpointer to the static configuration.
uint32_t	Baudrate
	Current baudrate in bit/s.
uint32_t	RxStartTimeoutUs
	Current value for the max time the driver waits for the first symbol in a message.
uint32_t	RxStopTimeoutUs
	Current value for the max time the driver waits for the next symbol in a message.
struct data_buffer_t	RxBuffer [2]
	Receive buffer for asynchronous transfers.
uart_rx_callback_t	RxCallback
	RX completion callback.
void *	RxCallbackData
	Data for the RX completion callback.
uint8_t	RxBufIndex
	Index of the active RX buffer.
uint8_t	RxStop
	Amount of RX buffers in the pipeline.
uint8_t	RxCancelled
	RX is cancelled.
struct data_buffer_t	TxBuffer [2]
	Transmit buffer for asynchronous transfers.
uart_tx_callback_t	TxCallback
	TX completion callback.
void *	TxCallbackData
	Data for the TX completion callback.
uint8_t	TxBufIndex
	Index of the active TX buffer.
uint8_t	TxStop
	Amount of TX buffers in the pipeline.
uart_break_callback_t	BreakCallback
	Send Break completion callback.
void *	BreakCallbackData
	Data for the Break send completion callback.
struct uwork_t	SendBreakWork
	timeout counter for Send Break

Detailed Description

UART driver run-time state

Definition at line 173 of file uart.h.
