uart_t Struct Reference

#include <uart.h>

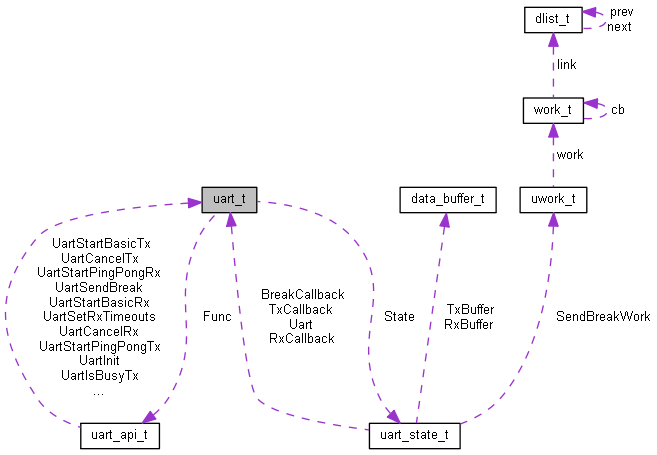

Collaboration diagram for uart_t:

Data Fields
const void *	Impl
	Device specific configuration data.
struct uart_state_t *	State
	Address to struct with RAM variables used by the uart driver.
uint32_t	Baudrate: 20
	Default baudrate in bit/s.
uint32_t	FlowControl: 2
	uart_flow_control_t
uint32_t	RtsInverse: 1
	Inverted RTS line (active 1)
uint32_t	Parity: 4
	uart_parity_t
uint32_t	StopBits: 1
	uart_stops_t
uint32_t	WordLength: 4
	uart_wordlen_t
uint32_t	RxStartTimeoutUs
	Default value for the max time the driver waits for the first symbol in a message.
uint32_t	RxStopTimeoutUs
	Default value for the max time the driver waits for the next symbol in a message.
const struct uart_api_t *	Func
	Virtual function table.

Detailed Description

UART driver configuration data

Definition at line 222 of file uart.h.
