sc16_chip_t Struct Reference

#include <sc16is7x0.h>

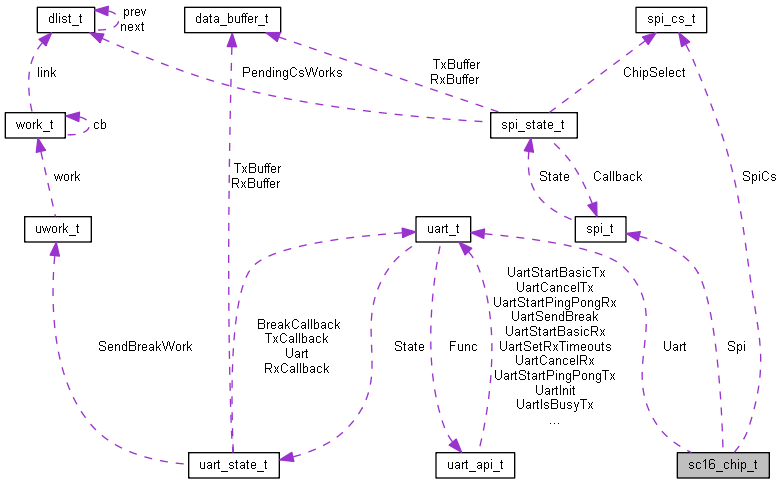

Collaboration diagram for sc16_chip_t:

Data Fields
struct sc16_chip_state_t *	State
	SC16 variables.
const struct spi_t *	Spi
	Pointer to the SPI interface instance.
struct spi_cs_t	SpiCs
	SPI CS settings.
uint32_t	SpiBaudrate
	SPI speed.
uint32_t	Xtal
	SC16 quartz frequency.
uint8_t	IrqPin
	HW IRQ pin number.
const struct uart_t *	Uart [2]
	2 SC16 Uarts

Detailed Description

sc16_chip_t structure holds SC16 chip settings common for both UARTS and GPIO

Definition at line 395 of file sc16is7x0.h.
