sc16_uart_state_t Struct Reference

#include <sc16is7x0.h>

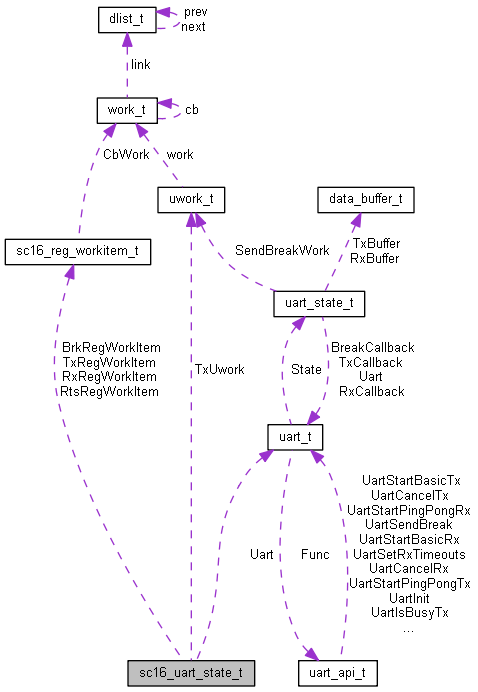

Collaboration diagram for sc16_uart_state_t:

Data Fields
const struct uart_t *	Uart
	Pointer to the parent structure.
uint8_t	TxStatus
	Holds the current operative Tx status.
uint8_t	RxStatus
	Holds the current operative Rx status.
uint8_t	OverflowCounter
	Holds the position in FIFO of an overflow error.
sc16_rxresult_t	RxResult: 8
	Last Rx result (OK, interbyte timeout / line error)
enum uart_rx_status_t	RxError: 8
	Rx result returned to the application.
sc16_txmachine_state_t	TxStateMachine: 8
	Tx statemachine state.
struct sc16_reg_workitem_t	TxRegWorkItem
	Descriptior of Tx request to register statemachine.
struct uwork_t	TxUwork
	uwork used by Tx on waiting for Tx end (empty FIFO)
sc16_rxmachine_state_t	RxStateMachine: 8
	Rx statemachine state.
struct sc16_reg_workitem_t	RxRegWorkItem
	Descriptior of Rx request to register statemachine.
struct sc16_reg_workitem_t	RtsRegWorkItem
	Descriptior of SetRts request to register statemachine.
struct sc16_reg_workitem_t	BrkRegWorkItem
	Descriptior of SendBreak request to register statemachine.

Detailed Description

UART driver run-time state

Definition at line 336 of file sc16is7x0.h.
