uart.h File Reference

Abstract UART driver header. More...

#include <core/clk.h>
#include <core/pm.h>
#include <core/uwork.h>
#include <dev/data-buffer.h>
#include <hal/nrf_uarte.h>
#include <lib/assert.h>

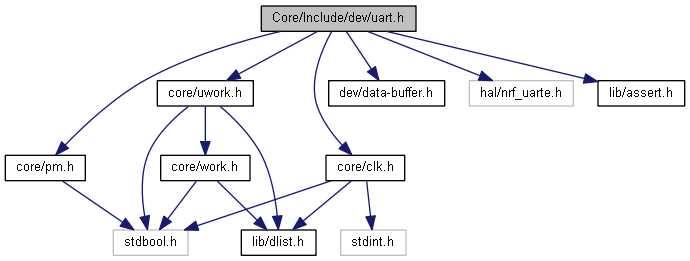

Include dependency graph for uart.h:

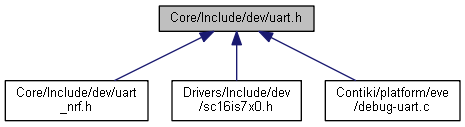

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	uart_state_t
struct	uart_api_t
struct	uart_t

Typedefs
typedef void(*	uart_rx_callback_t) (const struct uart_t *Uart, void *CallbackData, enum uart_rx_status_t RxStatus)
typedef void(*	uart_tx_callback_t) (const struct uart_t *Uart, void *CallbackData)
typedef void(*	uart_break_callback_t) (const struct uart_t *Uart, void *CallbackData)
typedef void(*	uart_init_t) (const struct uart_t *Uart)

Enumerations

Functions
static void	UartInit (const struct uart_t *Uart)
	Name: UartInit Initializes Uart. More...
static void	UartDisable (const struct uart_t *Uart)
	Name: UartDisable Disables UART. More...
static uint32_t	UartDmaBytesReceived (const struct uart_t *Uart)
	Name: UartDmaBytesReceived Will return number of received bytes for current DMA transfer. More...
static void	UartStartBasicTx (const struct uart_t *Uart, uint8_t *DataSrc, uint16_t DataSize, uart_tx_callback_t Callback, void *CallbackData)
	Name: UartStartBasicTx Transmit data using DMA transfer in basic mode. Using primary DMA descriptor only. More...
static void	UartStartPingPongTx (const struct uart_t *Uart, uint8_t *PrimDataSrc, uint16_t PrimDataSize, uint8_t *AltDataSrc, uint16_t AltDataSize, uart_tx_callback_t Callback, void *CallbackData)
	Name: UartStartPingPongTx Transmit data using DMA transfer in PingPong mode. Will alternate between primary and alternate DMA descriptor. More...
static void	UartRefreshPingPongTx (const struct uart_t *Uart, uint8_t *DataSrc, uint16_t DataSize, bool Stop)
	Name: UartRefreshPingPongTx Refresh transmit of data using DMA transfer in PingPong mode. More...
static struct data_buffer_t *	UartGetTxBuffer (const struct uart_t *Uart)
	Name: UartGetTxBuffer Returns the current TX buffer. More...
static void	UartStartBasicRx (const struct uart_t *Uart, uint8_t *DataDest, uint16_t DataSize, uart_rx_callback_t Callback, void *CallbackData)
	Name: UartStartBasicRx Receive data using DMA transfer in basic mode. Using primary DMA descriptor only. More...
static void	UartStartPingPongRx (const struct uart_t *Uart, uint8_t *PrimDataDest, uint16_t PrimDataSize, uint8_t *AltDataDest, uint16_t AltDataSize, uart_rx_callback_t Callback, void *CallbackData)
	Name: UartStartPingPongRx Receive data using DMA transfer in PingPong mode. Will alternate between primary and alternate DMA descriptor. More...
static void	UartRefreshPingPongRx (const struct uart_t *Uart, uint8_t *DataDest, uint16_t DataSize, bool Stop)
	Name: UartRefreshPingPongRx Refresh of receive data using DMA transfer in PingPong mode. Will alternate between primary and alternate DMA descriptor. More...
static const struct data_buffer_t *	UartGetRxBuffer (const struct uart_t *Uart)
	Name: UartGetRxBuffer Returns the current RX buffer. More...
static void	UartResetFifo (const struct uart_t *Uart, bool Tx, bool Rx)
	Name: UartResetFifo Resets FIFO buffer for Tx or Rx or both. NB: Resetting Rx FIFO stops receiving. More...
static void	UartCancelRx (const struct uart_t *Uart)
	Name: UartCancelRx Shuts down DMA, flushes FIFO and disables RX interrupts for the UART. More...
static bool	UartIsBusyRx (const struct uart_t *Uart)
	Name: UartIsBusyRx Returns busy status of the UART RX path. More...
static void	UartCancelTx (const struct uart_t *Uart)
	Name: UartCancelTx Shuts down DMA, flushes FIFO and disables TX interrupts for the UART. More...
static bool	UartIsBusyTx (const struct uart_t *Uart)
	Name: UartIsBusyTx Returns busy status of the UART TX path. More...
static void	UartSetBaudrate (const struct uart_t *Uart, uint32_t Baudrate)
	Name: UartSetBaudrate Sets new baudrate to the UART Note that in many situation Rx timeout settings must be adjusted simultaneously (use UartSetRxTimeouts function) More...
static void	UartSetRxTimeouts (const struct uart_t *Uart, uint32_t RxStartTimeoutUs, uint32_t RxStopTimeoutUs)
	Name: UartSetRxTimeouts Sets timeout values for the UART Calling code can use value UART_RX_TIMEOUT_DEFAULT as default value. More...
static void	UartSendBreak (const struct uart_t *Uart, uart_break_callback_t Callback, void *CallbackData)
	Sends break (sets TX to logic 0 for a time of 1 byte transmission) More...
static void	UartSetRts (const struct uart_t *Uart, bool Active)
	Manually drives RTS pin. HW flow control must be off to use this function. More...

Detailed Description

Abstract UART driver header.

Author

: PE, SE, Jetro AS

Definition in file uart.h.
