can.h File Reference

Driver for CAN MCP2562x in EVE. More...

#include <dev/spi.h>

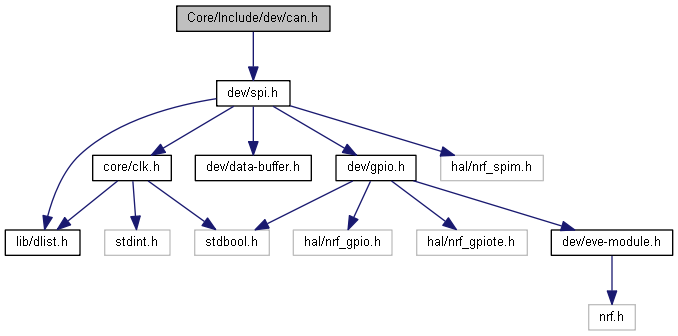

Include dependency graph for can.h:

Go to the source code of this file.

Data Structures
struct	can_t
	CAN driver descriptor: static structure for configuration of driver instance. More...
struct	can_state_t
	holds current CAN instance state variables. More...
struct	can_frame_t
	holds CAN frame and is used in driver's API to transfer frames between the driver and an application More...
struct	can_bittime_t
	CAN timing initialisation structure definition. More...

Macros
MCP2562x "Read Status" command result bit masks
#define	STAT_RX0IF   (1 << 0)
	Rx0 buffer interrupt flag (Rx0 is ready to be read)
#define	STAT_RX1IF   (1 << 1)
	Rx1 buffer interrupt flag (Rx1 is ready to be read)
#define	STAT_TX0REQ   (1 << 2)
	Tx0 RTS flag (Tx0 is pending)
#define	STAT_TX0IF   (1 << 3)
	Tx0 buffer interrupt flag (Tx0 being sent)
#define	STAT_TX1REQ   (1 << 4)
	Tx1 RTS flag (Tx1 is pending)
#define	STAT_TX1IF   (1 << 5)
	Tx1 buffer interrupt flag (Tx1 being sent)
#define	STAT_TX2REQ   (1 << 6)
	Tx2 RTS flag (Tx2 is pending)
#define	STAT_TX2IF   (1 << 7)
	Tx2 buffer interrupt flag (Tx2 being sent)
MCP2562x TXBnCTRL register (Transmit Buffer [n] Control) bit masks
#define	TXB_TXP_MASK   (3 << 0)
	Transmit Buffer Priority mask.
#define	TXB_TXP0   (1 << 0)
	Transmit Buffer Priority low bit.
#define	TXB_TXP1   (1 << 1)
	Transmit Buffer Priority high bit.
#define	TXB_TXREQ   (1 << 3)
	Message Transmit Request.
#define	TXB_TXERR   (1 << 4)
	Transmission Error Detected.
#define	TXB_MLOA   (1 << 5)
	Message Lost Arbitration.
#define	TXB_ABTF   (1 << 6)
	Message Aborted Flag.
MCP2562x interrupt bit masks
#define	INT_RX0IF   (1 << 0)
	Rx0 Full Interrupt Flag bit - must be cleared by MCU to reset interrupt condition.
#define	INT_RX1IF   (1 << 1)
	Rx1 Full Interrupt Flag bit - must be cleared by MCU to reset interrupt condition.
#define	INT_TX0IF   (1 << 2)
	Tx0 Empty Interrupt Flag bit - must be cleared by MCU to reset interrupt condition.
#define	INT_TX1IF   (1 << 3)
	Tx1 Empty Interrupt Flag bit - must be cleared by MCU to reset interrupt condition.
#define	INT_TX2IF   (1 << 4)
	Tx2 Empty Interrupt Flag bit - must be cleared by MCU to reset interrupt condition.
#define	INT_ERRIF   (1 << 5)
	Error Interrupt Flag bit (multiple sources in the EFLG register) - must be cleared by MCU to reset interrupt condition.
#define	INT_WAKIF   (1 << 6)
	Wake-up Interrupt Flag bit - must be cleared by MCU to reset interrupt condition.
#define	INT_MERRF   (1 << 7)
	Message Error Interrupt Flag bit - must be cleared by MCU to reset interrupt condition.

Typedefs
typedef void(*	can_rx_callback_t) (const struct can_t *Can, enum can_xbuffer_t BufNum)
	The callback is called on CAN frame reception. More...
typedef void(*	can_tx_callback_t) (const struct can_t *Can, enum can_xbuffer_t BufNum, uint8_t TXBnCTRL)
	The callback is called at CAN transmission ready and transmission error. More...
typedef void(*	can_wake_callback_t) (const struct can_t *Can)
	The callback is called at CAN chip wakeup. More...
typedef void(*	can_err_callback_t) (const struct can_t *Can, uint8_t EREG)
	The callback is called at CAN chip error. More...

Enumerations

Functions
void	CanInterruptCb (const struct can_t *Can)
	Driver's HW interrupt callback to be exposed to EVE config. More...
bool	CanInit (const struct can_t *Can)
	Initialises CAN instance structure, connects it to SPI. Powers up MCP2562x if supported. More...
bool	CanDisable (const struct can_t *Can)
	Disables interrupts from MCP2562x and releases SPI. Powers down MCP2562x if supported by product HW. More...
void	CanReset (const struct can_t *Can)
	Performs MCP2562x HW reset. MCP2562x switches to configuration mode after reset. NB! It should be verified that MCP2562x is in configuration mode with CanGetMode() function after reset before any subsequent operation. More...
bool	CanSetup (const struct can_t *Can)
	Sets up MCP2562x registers according to preconfigured parameters. NB! MCP2562x should be in configuration mode. More...
bool	CanSetBitTime (const struct can_t *Can, struct can_bittime_t *BitTime)
	Sets up MCP2562x CAN timing parameters. NB! MCP2562x should be in configuration mode. More...
bool	CanSetFilter (const struct can_t *Can, uint32_t Id, enum can_filter_t Filter)
	Sets up MCP2562x acceptance filters. NB! MCP2562x should be in configuration mode. More...
enum can_mode_t	CanGetMode (const struct can_t *Can)
	Reads current MCP2562x mode of operation. More...
bool	CanSetMode (const struct can_t *Can, enum can_mode_t Mode)
	Sets current MCP2562x mode of operation. NB! After setting new mode it should be verified that MCP2562x is in desired mode (in configuration mode after SW reset) with CanGetMode() function before any subsequent operation. More...
enum can_xbuffer_t	CanUploadFrame (const struct can_t *Can, struct can_frame_t *Frame, enum can_xbuffer_t Buffer)
	Loads 1 full CAN frame to MCP2562x TX register. More...
bool	CanSendFrame (const struct can_t *Can, enum can_xbuffer_t Buffer, enum can_priority_t Priority, can_tx_callback_t TransmitReadyCb)
	Sets priority and RTS flag to one of MCP2562x TX registers initiating transfer. More...
enum can_xbuffer_t	CanDownloadFrame (const struct can_t *Can, struct can_frame_t *Frame, enum can_xbuffer_t Buffer)
	Receives 1 full CAN frame from MCP2562x after Rx1/Rx2 is ready. More...
bool	CanReadStatus (const struct can_t *Can, uint8_t *Status)
	Gets MCP2562x TX/RX buffers status (IF/RTS). More...
bool	CanClearIF (const struct can_t *Can, uint8_t Mask)
	Clear MCP2562x interrupt flag(s) by mask. More...
bool	CanInterrupts (const struct can_t *Can, bool Enable)
	Sets/resets all the preconfigured interrupts. More...

Detailed Description

Driver for CAN MCP2562x in EVE.

Author

SE, Jetro AS

Definition in file can.h.
