sc16_uart_t Struct Reference

#include <sc16is7x0.h>

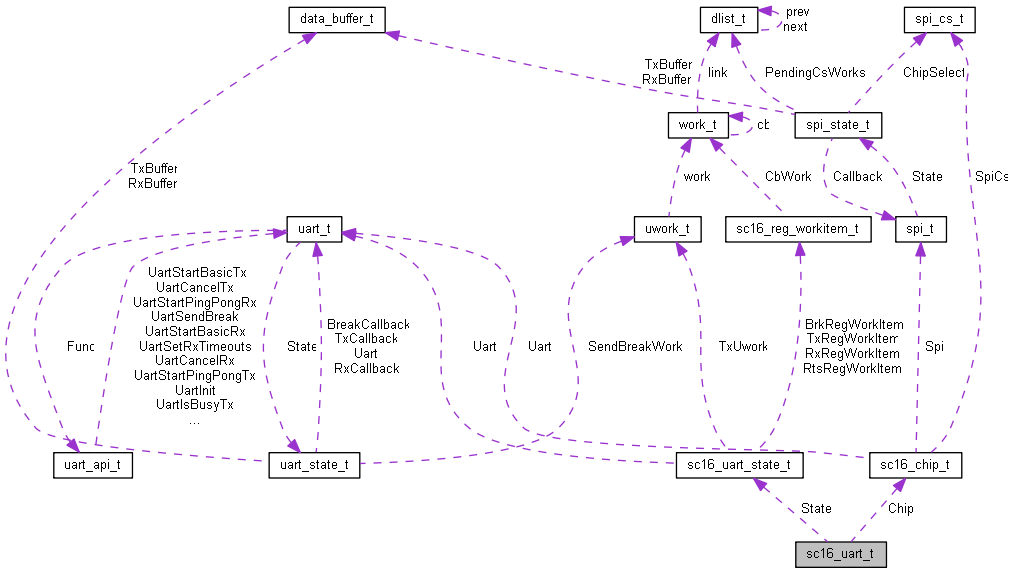

Collaboration diagram for sc16_uart_t:

Data Fields
struct sc16_uart_state_t *	State
	Address of struct with RAM variables used by the uart driver.
const struct sc16_chip_t *	Chip
	Address of SC16 chip descriptor.
uint32_t	FifoRxTrigger: 4
	Generating interrupt if RX contains the settled number of bytes received, SC16 Trigger Level Register (TLR)
uint32_t	FifoTxTrigger: 4
	Generating interrupt if TX has the settled number of free bytes, SC16 Trigger Level Register (TLR)
uint32_t	FifoRxWatermarkLow: 4
	RX threshold level to resume transmission in auto flow control mode, SC16 Transmission Control Register (TCR)
uint32_t	FifoRxWatermarkHigh: 4
	RX threshold level to halt transmission in auto flow control mode, SC16 Transmission Control Register (TCR)
uint32_t	RS485WordLength: 1
	Normal 8-bit or RS-485 multidrop 9-bit, SC16 Extra Features Control Register (EFCR)
uint32_t	RS485RtsAuto: 1
	RTS controlled by SC16 in RS485 mode, SC16 Extra Features Control Register (EFCR)
uint32_t	RS485RtsInverse: 1
	Inverse RTS (active 0) in RS485 mode, SC16 Extra Features Control Register (EFCR)
uint32_t	Channel: 1
	Select one of two UARTs on sc16is752 - SC16_CHANNEL_A or SC16_CHANNEL_B; should always be SC16_CHANNEL_A for sc16is750.

Detailed Description

sc16_uart_t structure holds SPI instance and SC16 settings to be used

Definition at line 356 of file sc16is7x0.h.
