Driver for SC16IS740/SC16IS750/SC16IS760 chip UART and GPIO. More...

#include <dev/uart.h>
#include <dev/gpio-ext.h>
#include <dev/spi.h>

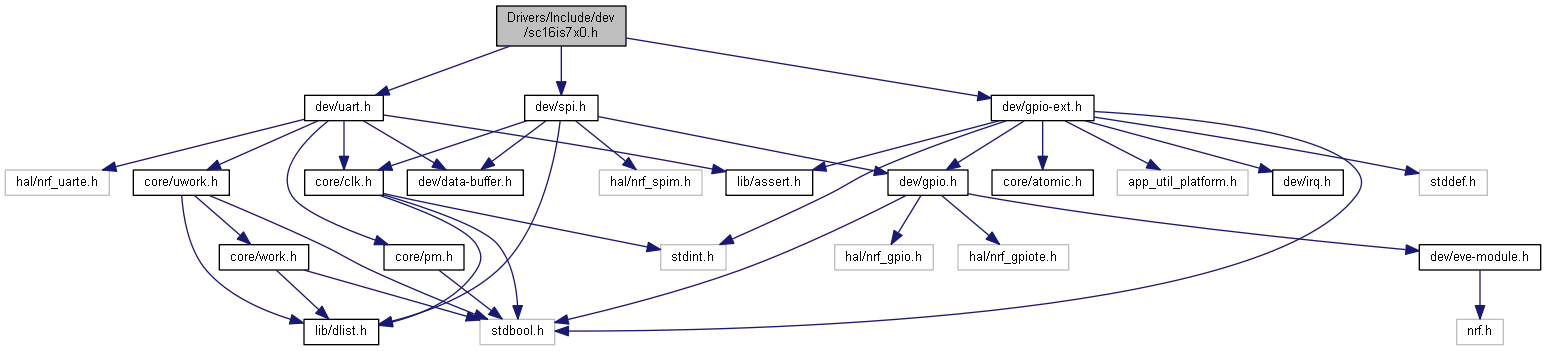

Include dependency graph for sc16is7x0.h:

Data Structures
struct	sc16_reg_workitem_t

struct	sc16_uart_state_t

struct	sc16_uart_t

struct	gpio_ext_sc16_t

struct	sc16_chip_t

Macros
#define	SC16_REG_RHR 0x00
	RHR/THR Receive Holding / Transmit Holding. More...

#define	SC16_REG_THR 0x00
	RHR/THR Receive Holding / Transmit Holding.

#define	SC16_REG_IER 0x01
	IER Interrupt Enable.

#define	SC16_REG_FCR 0x02
	FCR/IIR FIFO Control.

#define	SC16_REG_IIR 0x02
	FCR/IIR FIFO Control.

#define	SC16_REG_LCR 0x03
	LCR Line Control.

#define	SC16_REG_MCR 0x04
	MCR Modem Control.

#define	SC16_REG_LSR 0x05
	LSR Line Status.

#define	SC16_REG_MSR 0x06
	MSR/TCR Modem Status / Transmission Control (TCR is selected by EFR[4] = 1 and MCR[2] = 1)

#define	SC16_REG_TCR 0x06
	MSR/TCR Modem Status / Transmission Control (TCR is selected by EFR[4] = 1 and MCR[2] = 1)

#define	SC16_REG_TLR 0x07
	TLR Trigger Level (can only be written to when EFR[4] = 1 and MCR[2] = 1)

#define	SC16_REG_TXLVL 0x08
	TXLVL Transmitter FIFO Level.

#define	SC16_REG_RXLVL 0x09
	RXLVL Receiver FIFO Level.

#define	SC16_REG_IODIR 0x0A
	SC16_REG_DIRECTION.

#define	SC16_REG_IOSTATE 0x0B
	SC16_REG_PORT.

#define	SC16_REG_IOINT 0x0C
	SC16_REG_INT_MASK.

#define	SC16_REG_IOCTRL 0x0E
	SC16_REG_CONTROL.

#define	SC16_REG_EFCR 0x0F
	EFCR Extra Features Control.

#define	SC16_REG_DLL 0x00
	Division register low. More...

#define	SC16_REG_DLH 0x01
	Division register high.

#define	SC16_REG_EFR 0x02
	EFR Enhanced Features Register - Set LCR to 0xBF to access it! More...

#define	SC16_REG_XON1 0x04
	XON1 char.

#define	SC16_REG_XON2 0x05
	XON2 char.

#define	SC16_REG_XOFF1 0x06
	XOFF1 char.

#define	SC16_REG_XOFF2 0x07
	XOFF2 char.

#define	SC16_BIT_IER_CTS (1 << 7)
	CTS interrupt enable. More...

#define	SC16_BIT_IER_RTS (1 << 6)
	RTS interrupt enable.

#define	SC16_BIT_IER_XOFF (1 << 5)
	Xoff interrupt enable.

#define	SC16_BIT_IER_SLEEP (1 << 4)
	enable Sleep mode enable

#define	SC16_BIT_IER_MODEM (1 << 3)
	Modem Status Interrupt enable.

#define	SC16_BIT_IER_LINE (1 << 2)
	Receive Line Status interrupt enable.

#define	SC16_BIT_IER_TX (1 << 1)
	Transmit Holding Register interrupt enable.

#define	SC16_BIT_IER_RX (1 << 0)
	Receive Holding Register interrupt enable.

#define	SC16_SHIFT_FCR_RX_TRIGGER (6)
	2 bits defining RX trigger. Sets the trigger level for the RX FIFO More...

#define	SC16_SHIFT_FCR_TX_TRIGGER (4)
	2 bits defining TX trigger. Sets the trigger level for the TX FIFO.

#define	SC16_BIT_FCR_RESET_TX (1 << 2)
	reset TX FIFO

#define	SC16_BIT_FCR_RESET_RX (1 << 1)
	reset RX FIFO

#define	SC16_BIT_FCR_FIFO_ENABLE (1 << 0)
	FIFO enable.

#define	SC16_BIT_IIR_NONE 0x01
	No interrupts pending. More...

#define	SC16_BIT_IIR_THR 0x02
	THR interrupt.

#define	SC16_BIT_IIR_RHR 0x04
	RHR interrupt.

#define	SC16_BIT_IIR_RXE 0x06
	Receive Line Status error.

#define	SC16_BIT_IIR_RTO 0x0C
	Receiver time-out interrupt.

#define	SC16_BIT_IIR_IO 0x30
	Input pin change of state.

#define	SC16_BIT_LCR_DIVISOR_LATCH (1 << 7)
	divisor latch enable More...

#define	SC16_BIT_LCR_BREAK (1 << 6)
	Break control bit. When enabled, the break control bit causes a break condition to be transmitted.

#define	SC16_BIT_LCR_PARITY_FORCED (1 << 5)
	forced parity (inverted SC16_BIT_LCR_PARITY_EVEN)

#define	SC16_BIT_LCR_PARITY_EVEN (1 << 4)
	parity type (odd/even)

#define	SC16_BIT_LCR_PARITY_ENABLE (1 << 3)
	parity enable

#define	SC16_BIT_LCR_STOPS (1 << 2)
	Number of stop bits.

#define	SC16_SHIFT_LCR_WORD_LENGTH (0)
	2 bits for selection of Word length

#define	SC16_BIT_MCR_CLOCK_DIVISOR (1 << 7)
	0 = clock/1, 1 = clock/4 More...

#define	SC16_BIT_MCR_IRDA (1 << 6)
	0 = normal UART mode, 1 = IrDA mode

#define	SC16_BIT_MCR_XON_ANY (1 << 5)
	1 = enable Xon Any function

#define	SC16_BIT_MCR_LOOPBACK (1 << 4)
	1 = enable local Loopback mode

#define	SC16_BIT_MCR_TCR_ENABLE (1 << 2)
	enable the TCR and TLR register.

#define	SC16_BIT_MCR_FORCE_RTS (1 << 1)
	0 = force RTS to inactive (HIGH), 1 = force RTS to active (LOW).

#define	SC16_BIT_MCR_FORCE_DTR (1 << 0)
	Force DTR. Only in modem mode!

#define	SC16_BIT_LSR_FIFO_ERR (1 << 7)
	FIFO data error. More...

#define	SC16_BIT_LSR_TX_EMPTY (1 << 6)
	THR and TSR empty. This bit is the Transmit Empty indicator.

#define	SC16_BIT_LSR_THR_EMPTY (1 << 5)
	Transmit Holding Register Empty indicator.

#define	SC16_BIT_LSR_BREAK (1 << 4)
	A break condition occurred.

#define	SC16_BIT_LSR_FRAME_ERR (1 << 3)
	received data did not have a valid stop bit

#define	SC16_BIT_LSR_PARITY_ERR (1 << 2)
	parity error in data being read from RX FIFO

#define	SC16_BIT_LSR_OVERRUN (1 << 1)
	overrun error has occurred

#define	SC16_BIT_LSR_RX_READY (1 << 0)
	there is at least one character in the RX FIFO

#define	SC16_SHIFT_TCR_FIFO_RESUME (4)
	4 bits for RX FIFO level to resume transmission More...

#define	SC16_SHIFT_TCR_FIFO_HALT (0)
	4 bits for RX FIFO level to halt transmission

#define	SC16_SHIFT_TLR_RX_FIFO (4)
	4 bits for RX FIFO levels (4 to 60) to generate interrupt More...

#define	SC16_SHIFT_TLR_TX_FIFO (0)
	4 bits for TX FIFO levels (4 to 60) to generate interrupt

#define	SC16_BIT_EFCR_IRDA_MODE (1 << 7)
	IrDA mode. More...

#define	SC16_BIT_EFCR_RTS_INVERT (1 << 5)
	invert RTS signal in RS-485 mode

#define	SC16_BIT_EFCR_RTS_AUTO (1 << 4)
	enable the transmitter to control the RTS pin

#define	SC16_BIT_EFCR_TX_OFF (1 << 2)
	Disable transmitter.

#define	SC16_BIT_EFCR_RX_OFF (1 << 1)
	Disable receiver.

#define	SC16_BIT_EFCR_9BIT (1 << 0)
	Enable 9-bit or Multidrop mode (RS-485)

#define	SC16_BIT_EFR_CTS_ON (1 << 7)
	CTS flow control enable. More...

#define	SC16_BIT_EFR_RTS_ON (1 << 6)
	RTS flow control enable.

#define	SC16_BIT_EFR_SPECIAL_CHAR (1 << 5)
	Special character detect (in XOFF2 register)

#define	SC16_BIT_EFR_ENHANCED_ON (1 << 4)
	Enhanced functions enable.

#define	SC16_SHIFT_EFR_FLOW_CTRL (0)
	4 bits for flow control selection

#define	SC16_EFR_ACCESS 0xBF
	This value should be written to LCR register in order to access EFR.

#define	SC16_BIT_IOCTRL_SRESET (1 << 3)
	Software reset. A write to bit will reset the device. Once the device is reset this bit is automatically set to �0� More...

#define	SC16_BIT_IOCTRL_GPIO_ON (1 << 1)
	This bit programs GPIO[7:4] as I/O pins or modem RI, CD, DTR, DSR pins. 0 = I/O pins, 1 = modem.

#define	SC16_BIT_IOCTRL_IOLATCH (1 << 0)
	Enable/disable inputs latching (keep value caused interrupt in IOState until it is read)

#define	SC16_CHANNEL_A 0
	Select channel A UART on sc16is750, the only setting on sc16is740.

#define	SC16_CHANNEL_B 1
	Select channel B UART on sc16is750.

#define	SC16_FIFO_SIZE 64
	Tx/Rx FIFO length.

Enumerations

Functions
void	Sc16OutPort (const struct gpio_ext_t *GpioExt, uint8_t Address, uint16_t Data)
	Synchronous function writes SC16 register asynchronously and waits for the end of the operation. Uses internally by inline functions.

uint16_t	Sc16InPort (const struct gpio_ext_t *GpioExt, uint8_t Address)
	Synchronous function reads SC16 register asynchronously and waits for the end of the operation. Uses internally by inline functions.

static void	GpioExtInitSc16 (const struct gpio_ext_t *GpioExt)
	Initialize GPIO expander. More...

static void	GpioExtDisableSc16 (const struct gpio_ext_t *GpioExt)
	De-initialize IO expander. More...

static uint16_t	GpioExtInPortSc16 (const struct gpio_ext_t *GpioExt)
	Read 8-bits data from GPIO port. More...

static void	GpioExtOutPortSc16 (const struct gpio_ext_t *GpioExt, uint16_t Data)
	Write 8-bits data to GPIO port. More...

static void	GpioExtSetDirectionSc16 (const struct gpio_ext_t *GpioExt, uint16_t Direction)
	Set pins direction to GPIO port. More...

static void	GpioExtSetPullSelectSc16 (const struct gpio_ext_t *GpioExt, uint16_t PullSelect)
	Select pullup or pulldown for GPIO port. More...

static void	GpioExtSetPullEnableSc16 (const struct gpio_ext_t *GpioExt, uint16_t PullEnable)
	Enable pullup/pulldown to GPIO port. More...

static void	GpioExtSetInterruptsSc16 (const struct gpio_ext_t *GpioExt, uint16_t Mask)
	Enable/disable interrupts on input GPIO pins. More...

static void	GpioExtSetLatchSc16 (const struct gpio_ext_t *GpioExt, uint16_t Mask)
	Enable/disable latching values on input GPIO pins after interrupt until they are read. More...

static void	GpioExtSetDriveSc16 (const struct gpio_ext_t *GpioExt, uint8_t Values[])
	Set drive level for output pins. More...

Internally synchronous functions
void	Sc16Init (const struct sc16_chip_t *Chip)

void	UartSc16Init (const struct uart_t *Uart)

void	UartSc16Disable (const struct uart_t *Uart)

bool	UartSc16IsBusyTx (const struct uart_t *Uart)

void	UartSc16ResetFifo (const struct uart_t *Uart, bool Tx, bool Rx)

void	UartSc16SetBaudrate (const struct uart_t *Uart)

void	UartSc16SetRxTimeouts (const struct uart_t *Uart, uint32_t RxStartTimeoutUs, uint32_t RxStopTimeoutUs)

Internally asynchronous functions
void	UartSc16CancelTx (const struct uart_t *Uart)

void	UartSc16StartBasicTx (const struct uart_t Uart, uint8_t DataSrc, uint16_t DataSize, uart_tx_callback_t Callback, void *CallbackData)

void	UartSc16StartBasicRx (const struct uart_t Uart, uint8_t DataDest, uint16_t DataSize, uart_rx_callback_t Callback, void *CallbackData)

void	UartSc16StartPingPongTx (const struct uart_t Uart, uint8_t PrimDataSrc, uint16_t PrimDataSize, uint8_t AltDataSrc, uint16_t AltDataSize, uart_tx_callback_t Callback, void CallbackData)

void	UartSc16StartPingPongRx (const struct uart_t Uart, uint8_t PrimDataSrc, uint16_t PrimDataSize, uint8_t AltDataSrc, uint16_t AltDataSize, uart_rx_callback_t Callback, void CallbackData)

void	UartSc16RefreshPingPongTx (const struct uart_t Uart, uint8_t DataSrc, uint16_t DataSize, bool Stop)

void	UartSc16RefreshPingPongRx (const struct uart_t Uart, uint8_t DataDest, uint16_t DataSize, bool Stop)

void	UartSc16CancelRx (const struct uart_t *Uart)

bool	UartSc16IsBusyRx (const struct uart_t *Uart)

void	UartSc16SendBreak (const struct uart_t Uart, uart_break_callback_t Callback, void CallbackData)

void	UartSc16SetRts (const struct uart_t *Uart, bool Active)

void	UartSc16InterruptHandler (struct work_t *Work)

Variables
const struct uart_api_t	UartSc16Func

const struct gpio_ext_api_t	GpioSc16Func

Detailed Description

Driver for SC16IS740/SC16IS750/SC16IS760 chip UART and GPIO.

Author: SE, Jetro AS

Definition in file sc16is7x0.h.
